AI Eval

ai.eval AI v0.1.0

Score an AI output against assertions: exact, contains, not-contains, regex, JSON-schema, and LLM-judge (a rubric judged by a model returning {pass, reason}). Emits { pass, score, checks } — failing assertions are results, not errors, so quality gates compose with If / Stop-and-Error. The regression-testing primitive that makes prompts shippable.

The AI Eval step on the Studio canvas — The **AI Eval** step as it appears on the Studio canvas — input pins on the left, output ports on the right.

Finding it in the library

Search the builder's node library for AI Eval (it lives under AI). A single click opens the in-editor docs panel shown here — description, ports, and every property, without leaving the canvas. Double-click (or drag) to add it to the workflow.

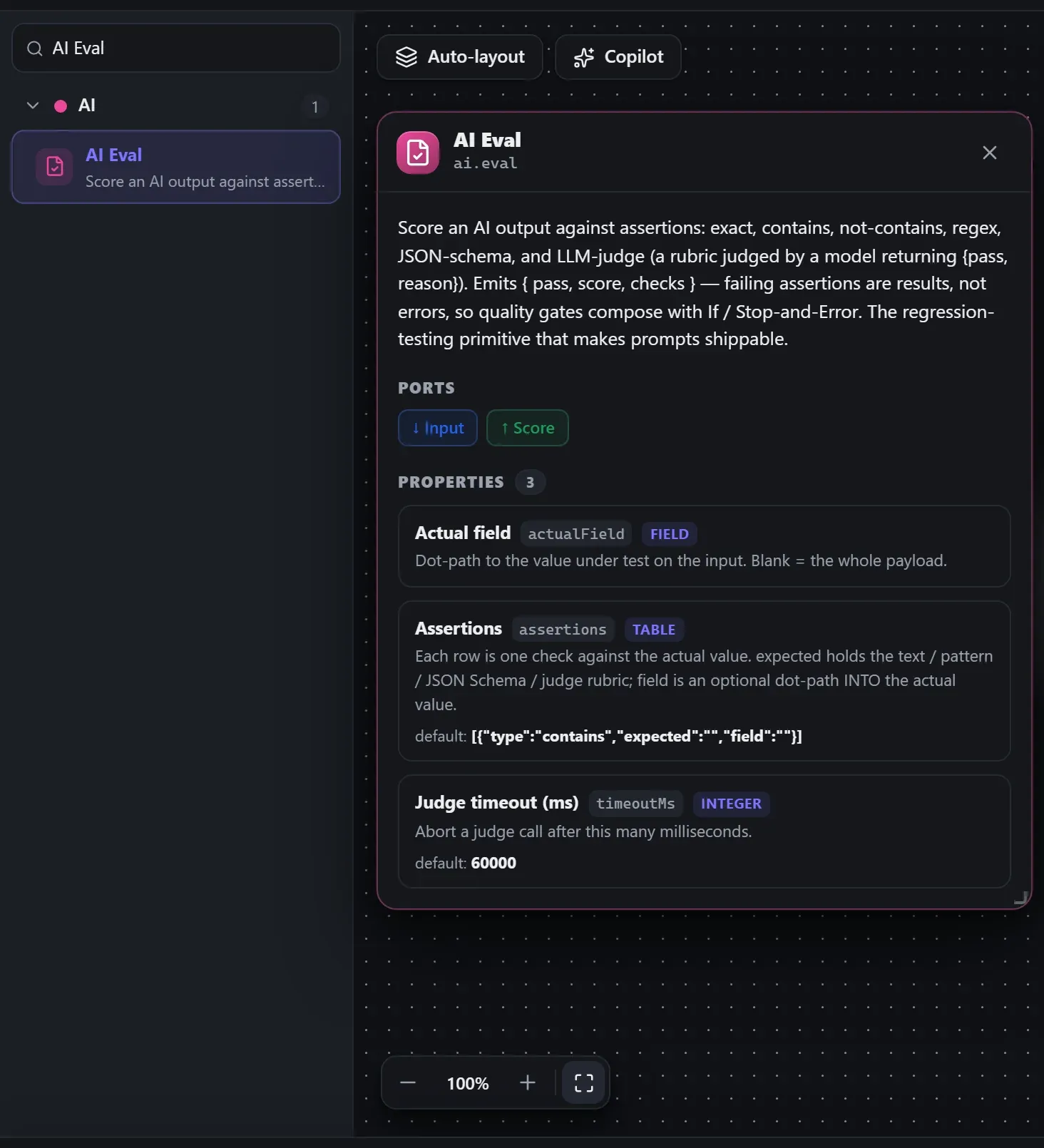

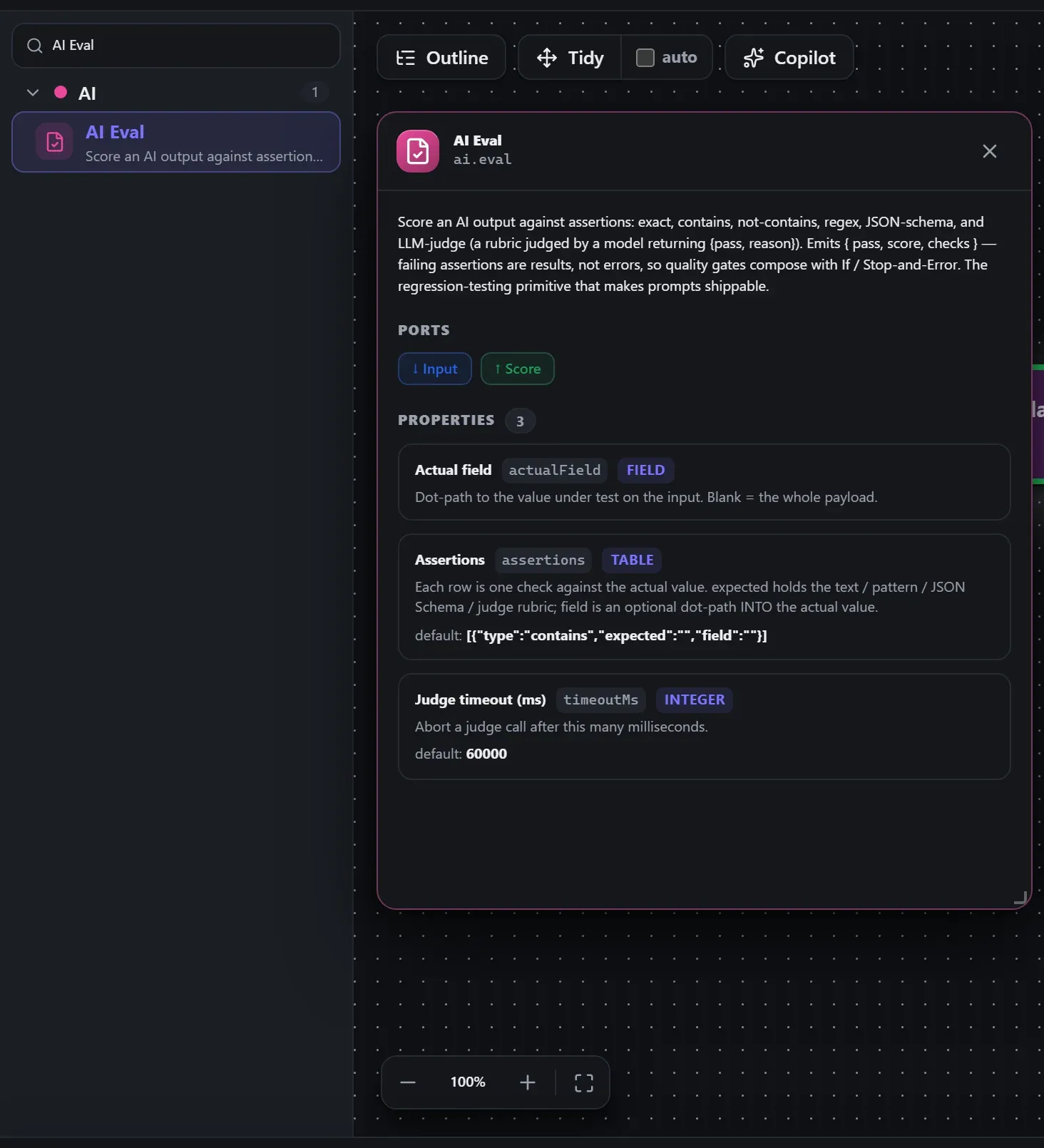

AI Eval in the node library, with the in-editor docs panel open — The library entry and the in-editor docs panel for **AI Eval** — the same reference this page is generated from.

Wired up in the builder

AI Eval in a real, runnable flow — captured live from the Studio editor, exactly as it looks on your canvas. The ◈ ports carry the AI Model provider you wire in. This is the same workflow used for the example input & output below.

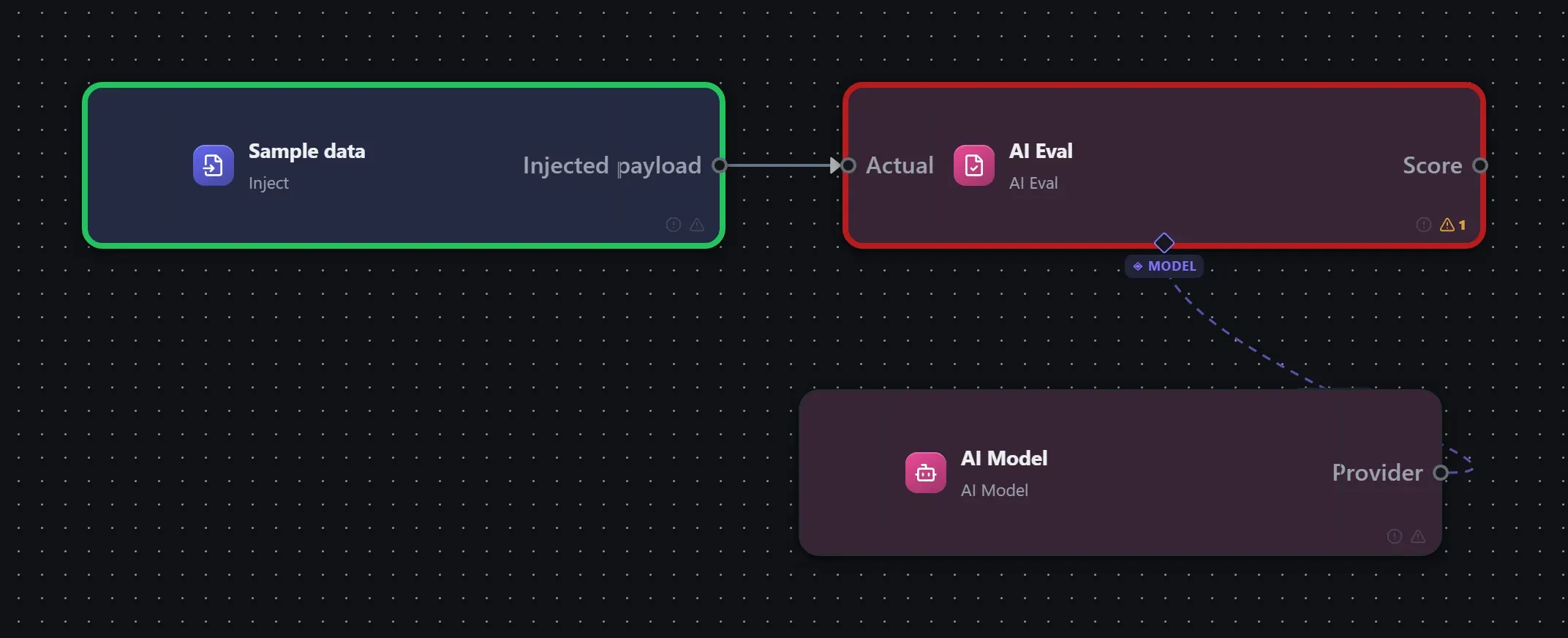

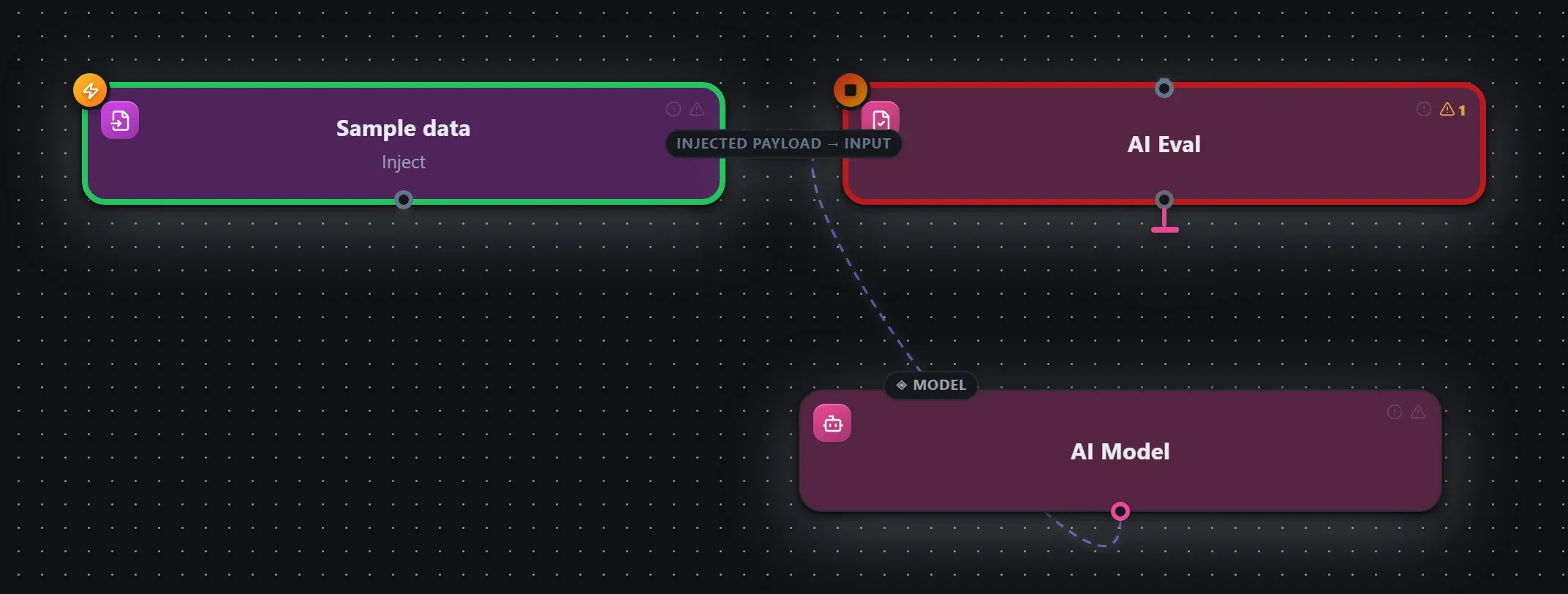

AI Eval wired into a runnable workflow in the Studio builder — **AI Eval** wired into a runnable flow — input on the left, output on the right, AI Model provider wired into the ◈ ports below.

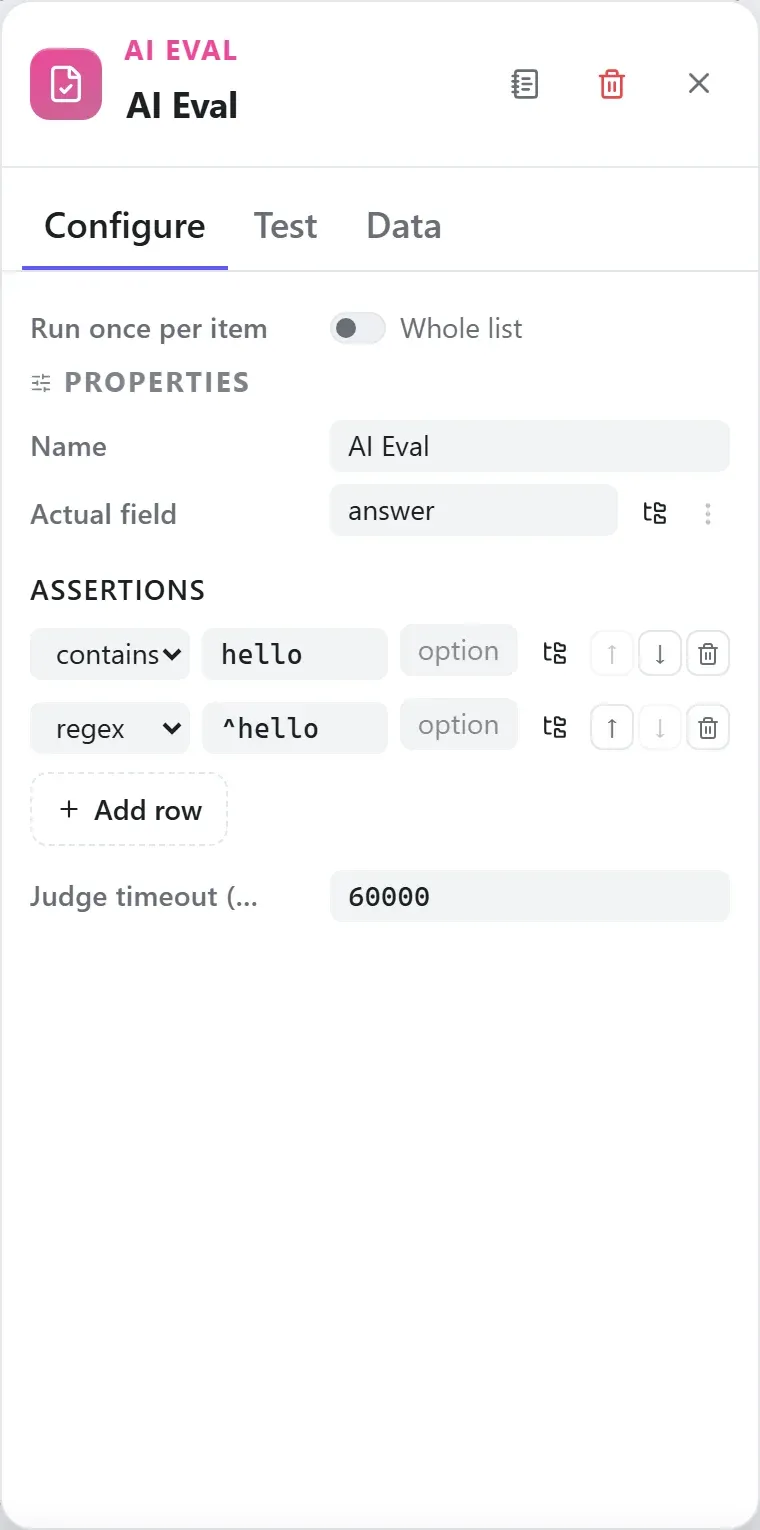

How it’s configured

The node’s Configure panel as it opens in the builder when you select the step — every setting laid out with real values. Click any field to edit it.

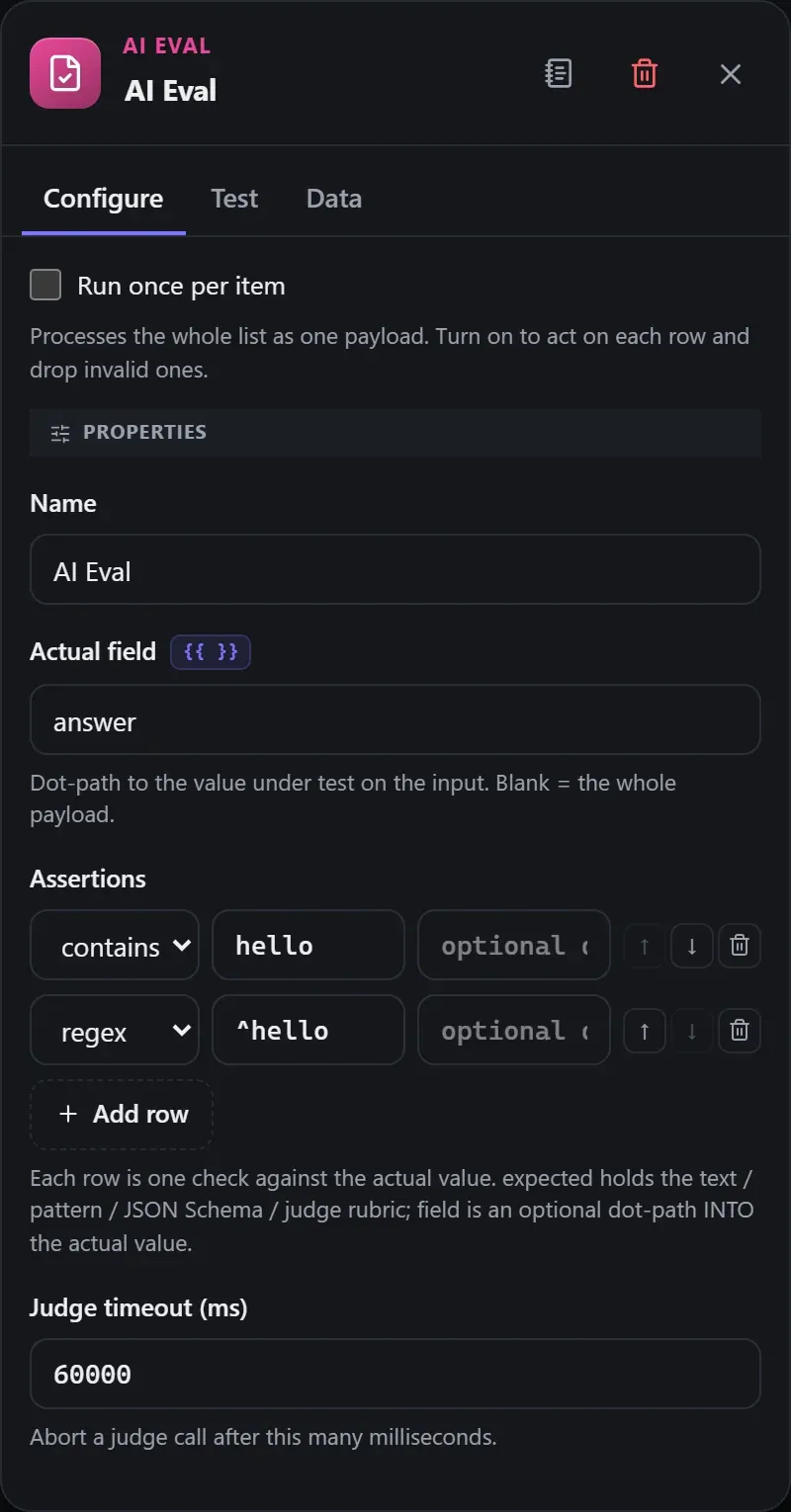

The AI Eval node's Configure panel in the Studio builder — The **Configure** panel for **AI Eval**, showing the settings from the flow above.

Ports

Ports are the node’s contract with its neighbours. In the editor a port label renders bold when wired and italic when optional; ◈ ports accept attachment carriers rather than data wires.

Direction	Port	Label	What flows through it
Input	`input`	Input
Output	`output`	Score

How data flows through it

AI Eval consumes the content of the incoming envelope — when it is fed directly by a trigger, the trigger’s wrapper is unwrapped at the node boundary so the node sees the actual data, not the metadata shell. Its output becomes the payload for the next node, while the envelope (trace ids, correlation, binary refs) rides along untouched. In the Runs view you always see the whole envelope for both sides of this node.

Expressions in the config

None of this node’s properties are string-typed, so {{ }} expressions don’t apply here — JSON- and code-typed fields are always taken literally.

Build it with AI

Every node in this reference is reachable through Flowdrome’s AI Copilot and the MCP tools — say what you want, and the graph surgery happens server-side. Node types resolve fuzzily, so the catalog label (AI Eval) works as well as the exact type id (ai.eval).

In the Copilot panel (or any connected AI):

add a ai eval node after the trigger

As a step in a create_chain_workflow call:

{"type":"AI Eval","config":{}}

Raw MCP call — add this node to a workflow with add_node

curl -s -X POST http://localhost:48170/mcp -H "content-type: application/json" -d '{ "jsonrpc": "2.0", "id": "1", "method": "tools/call", "params": { "name": "add_node", "arguments": { "workflowId": "<id>", "type": "AI Eval" } } }'

Example input & output

Captured from a real test run of the workflow above — this is what you see in the run data panel after pressing Test workflow.

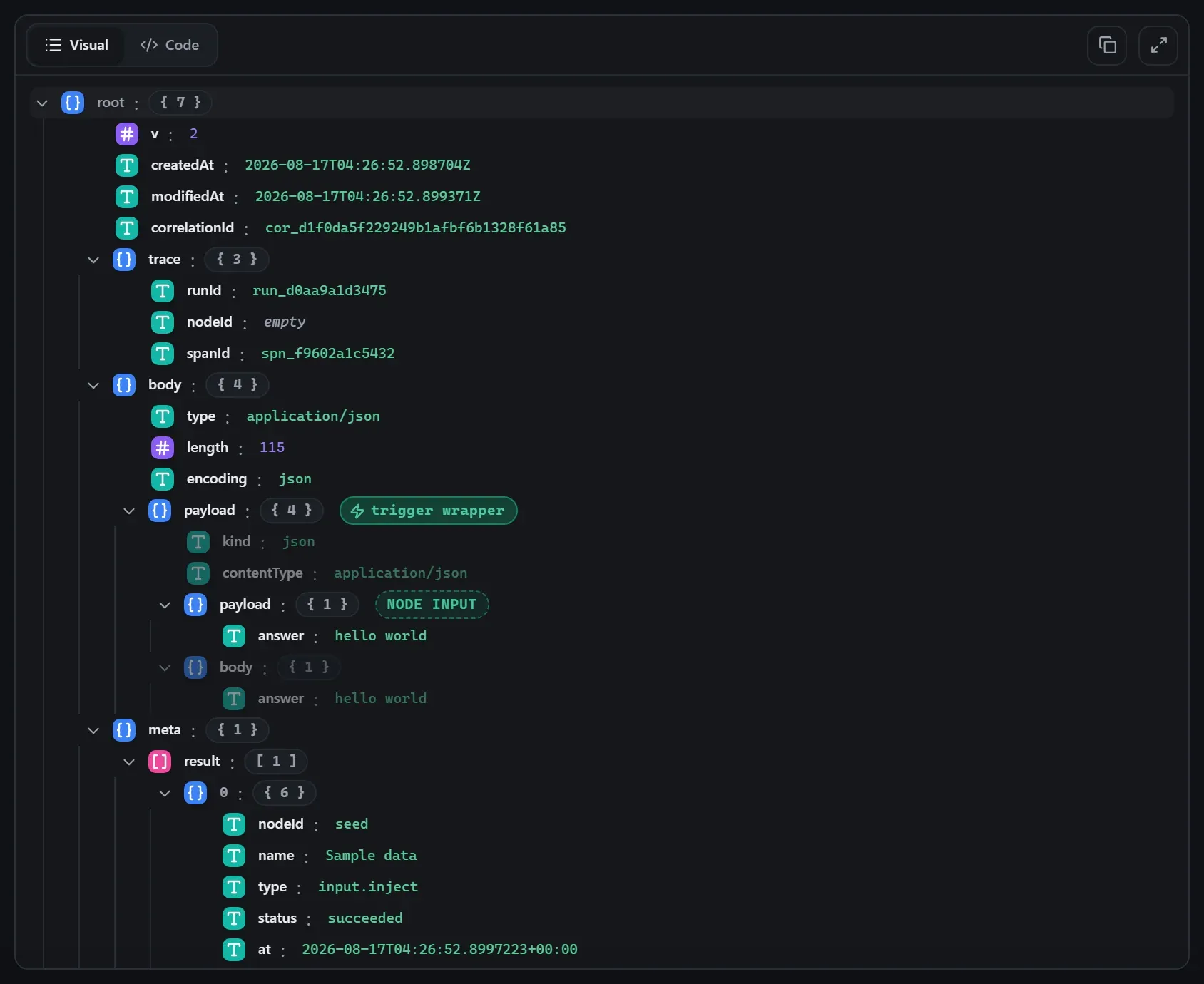

Input — what the node received

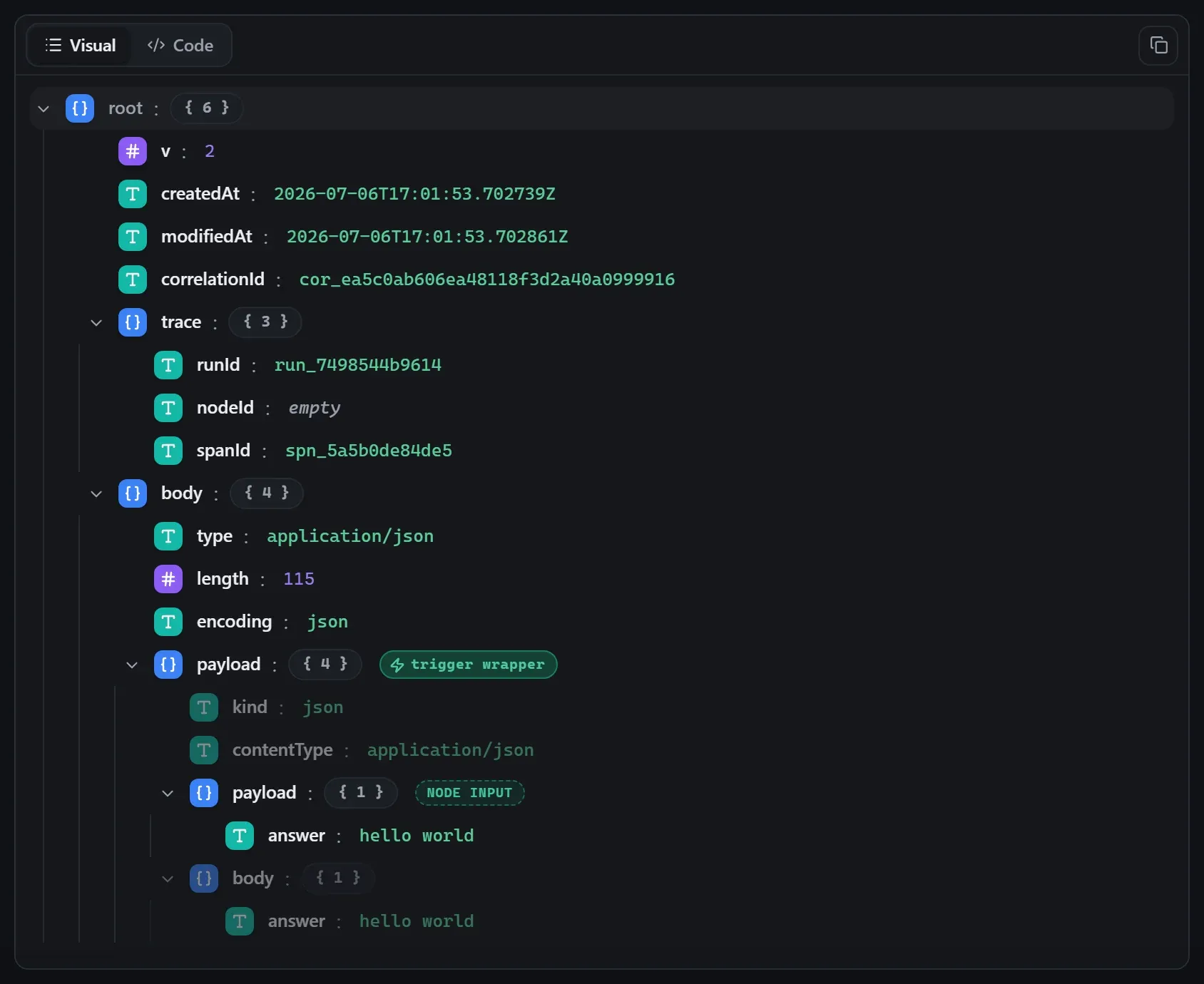

The AI Eval node's input envelope in the run data viewer — The input envelope in the Runs view — Flowdrome always shows the whole envelope, with the payload inside `body`.

Output — what the node produced

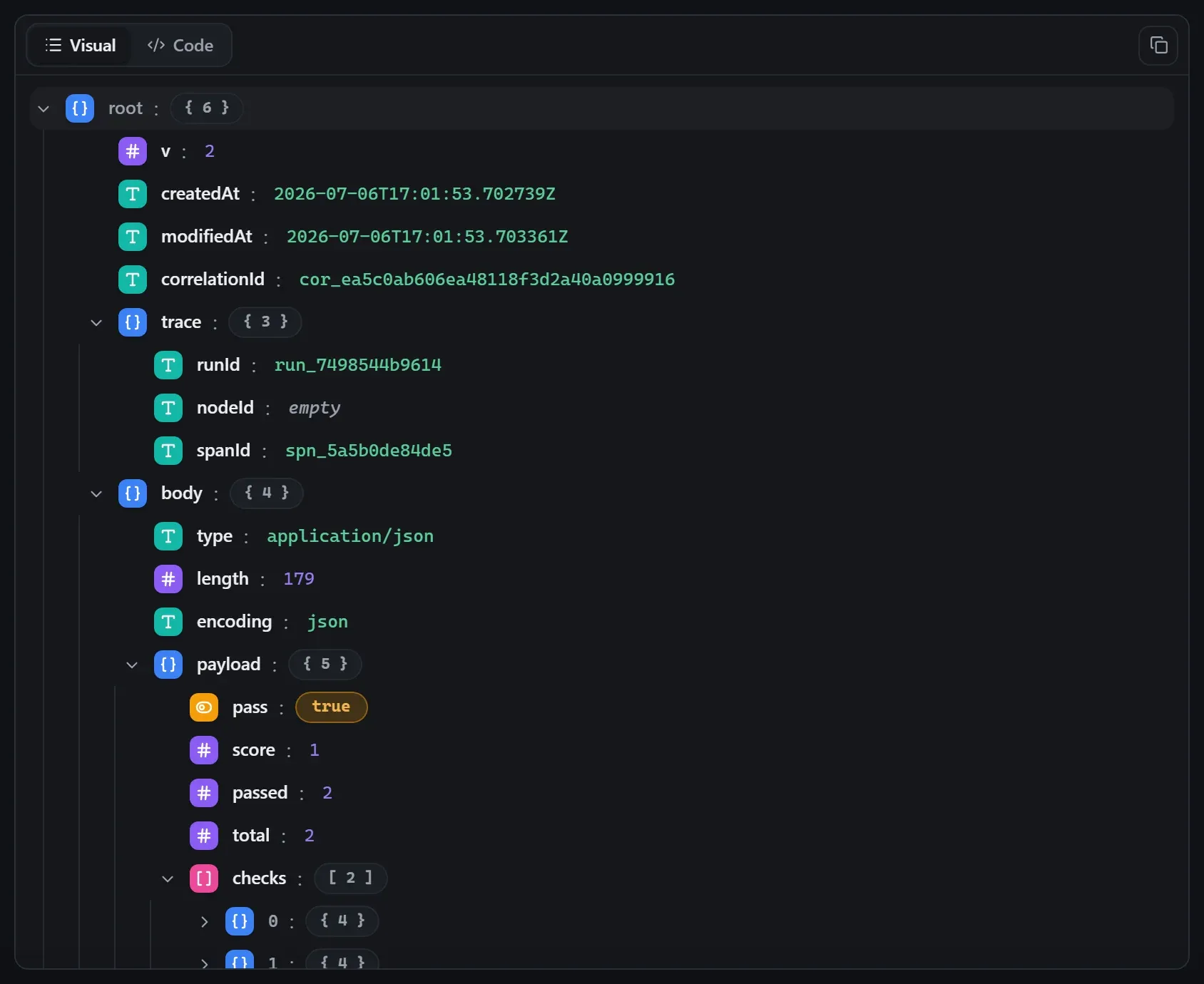

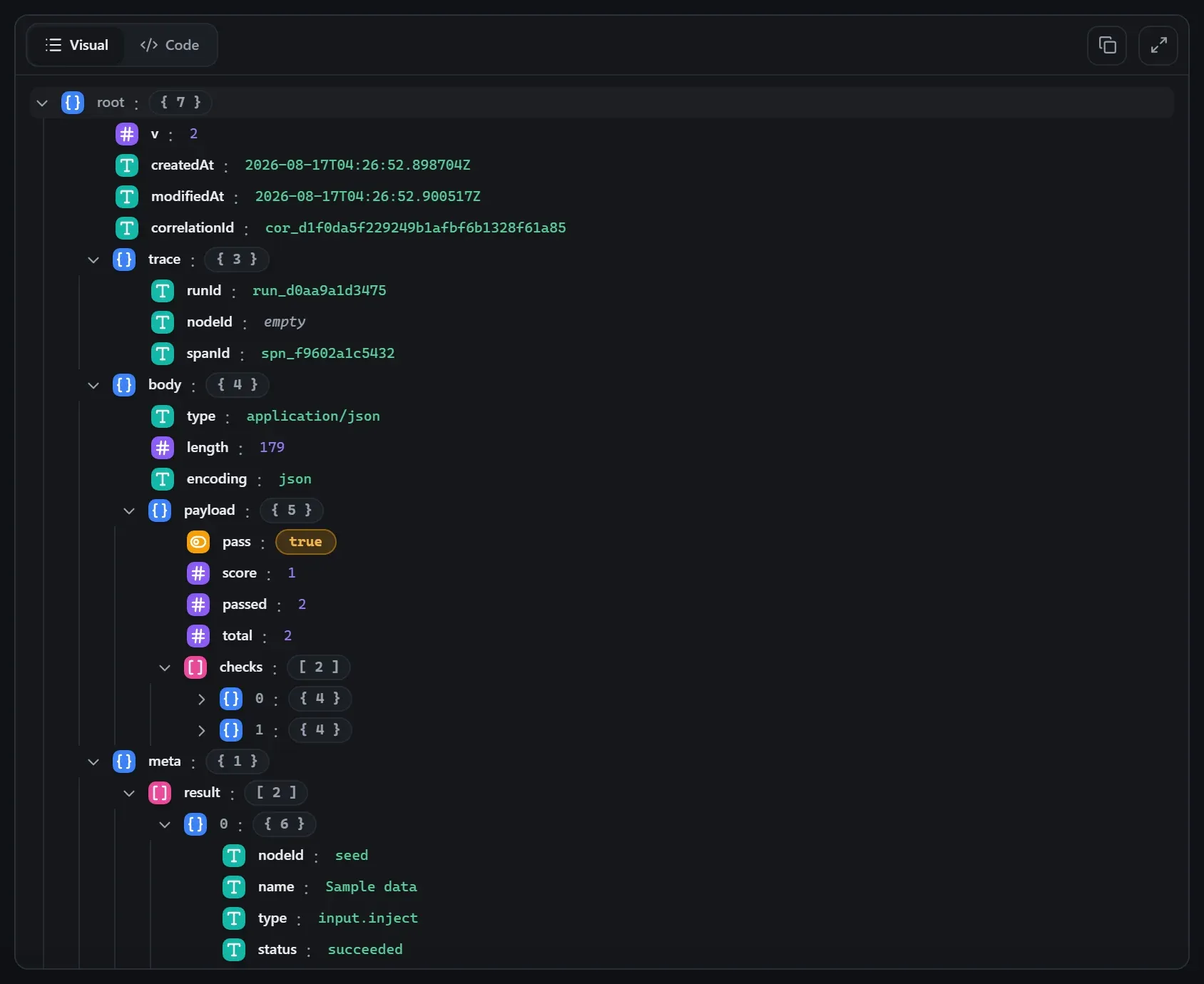

The AI Eval node's output envelope in the run data viewer — The output envelope after the step ran.

Property reference

Every setting, with its type and default — the same fields shown configured in the panel above.

Property	Type	Default	Description
Actual field `actualField`	`field`	`""`	Dot-path to the value under test on the input. Blank = the whole payload.
Assertions `assertions`	`rows`	`[{"type":"contains","expected":"","field":""}]`	Each row is one check against the actual value. expected holds the text / pattern / JSON Schema / judge rubric; field is an optional dot-path INTO the actual value.
Judge timeout (ms) `timeoutMs`	`int`	`60000`	Abort a judge call after this many milliseconds.
