Error Trigger

error-handling.error Error Handling v0.1.0

Fires when any node in the run fails unhandled — runs its downstream branch as a recovery phase of the same (still failed) run.

The Error Trigger step on the Studio canvas — The **Error Trigger** step as it appears on the Studio canvas — input pins on the left, output ports on the right.

Finding it in the library

Search the builder's node library for Error Trigger (it lives under Error Handling). A single click opens the in-editor docs panel shown here — description, ports, and every property, without leaving the canvas. Double-click (or drag) to add it to the workflow.

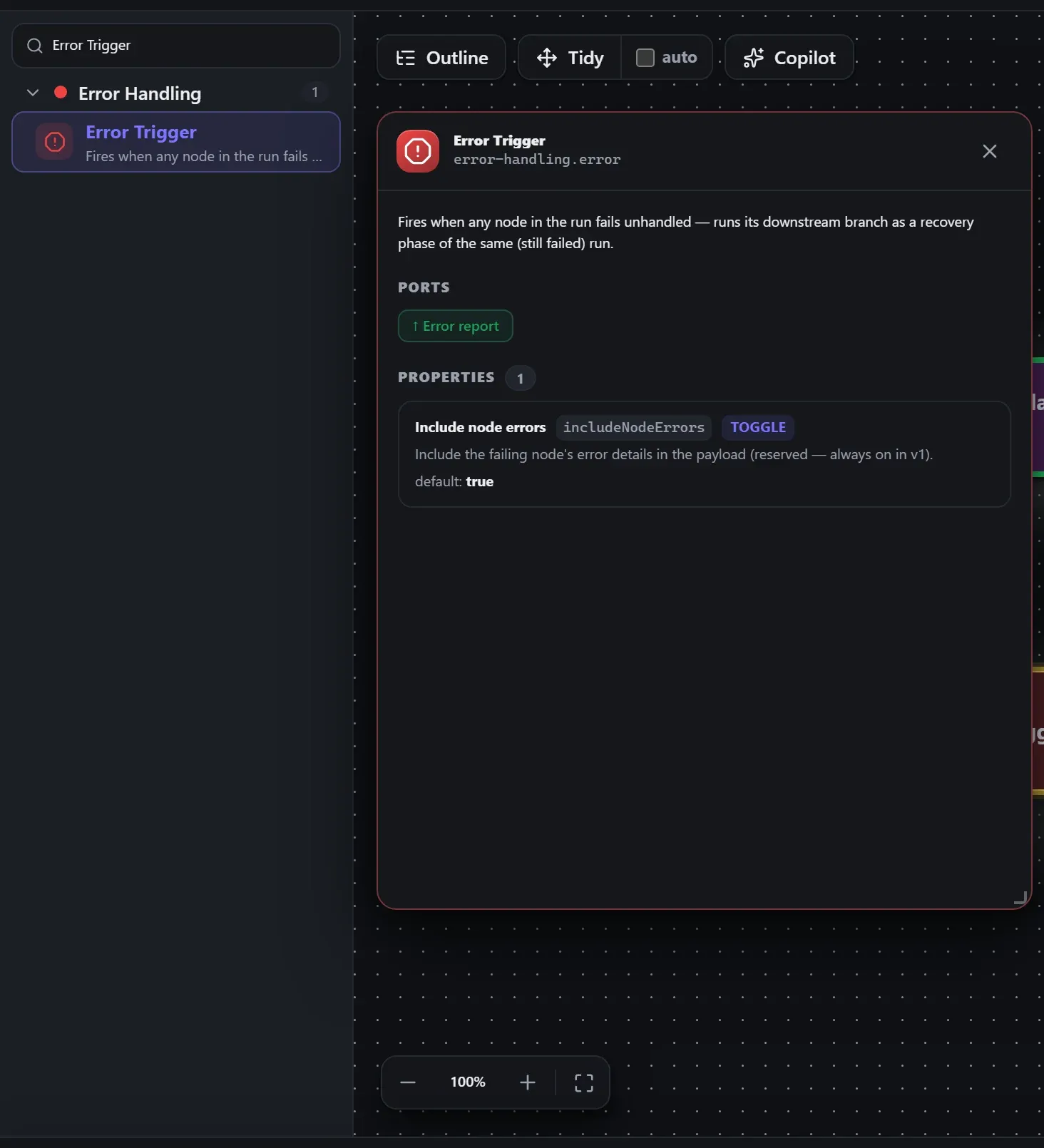

Error Trigger in the node library, with the in-editor docs panel open — The library entry and the in-editor docs panel for **Error Trigger** — the same reference this page is generated from.

Wired up in the builder

Error Trigger in a real, runnable flow — captured live from the Studio editor, exactly as it looks on your canvas. This is the same workflow used for the example input & output below.

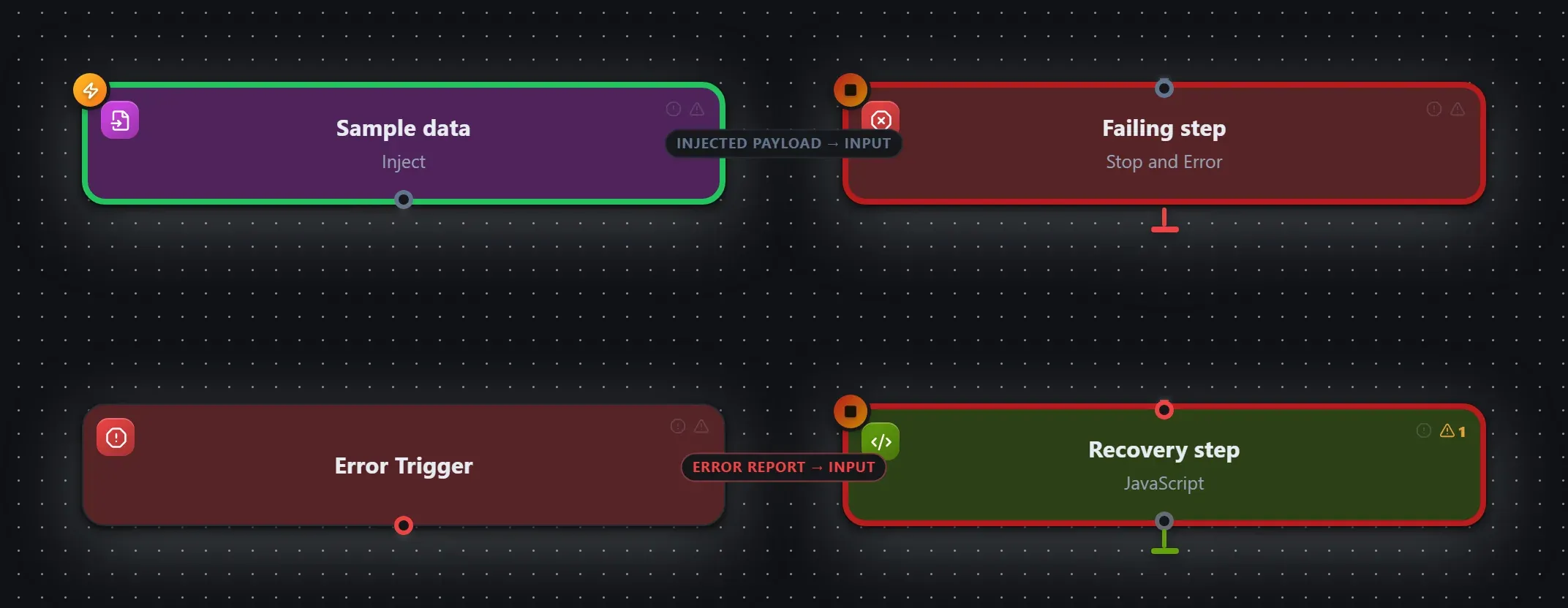

Error Trigger wired into a runnable workflow in the Studio builder — **Error Trigger** wired into a runnable flow — input on the left, output on the right.

How it’s configured

The node’s settings as the builder shows them — every field laid out with real values. In the Studio these are edited on the node: click the chevron on the divider under its ports to open them.

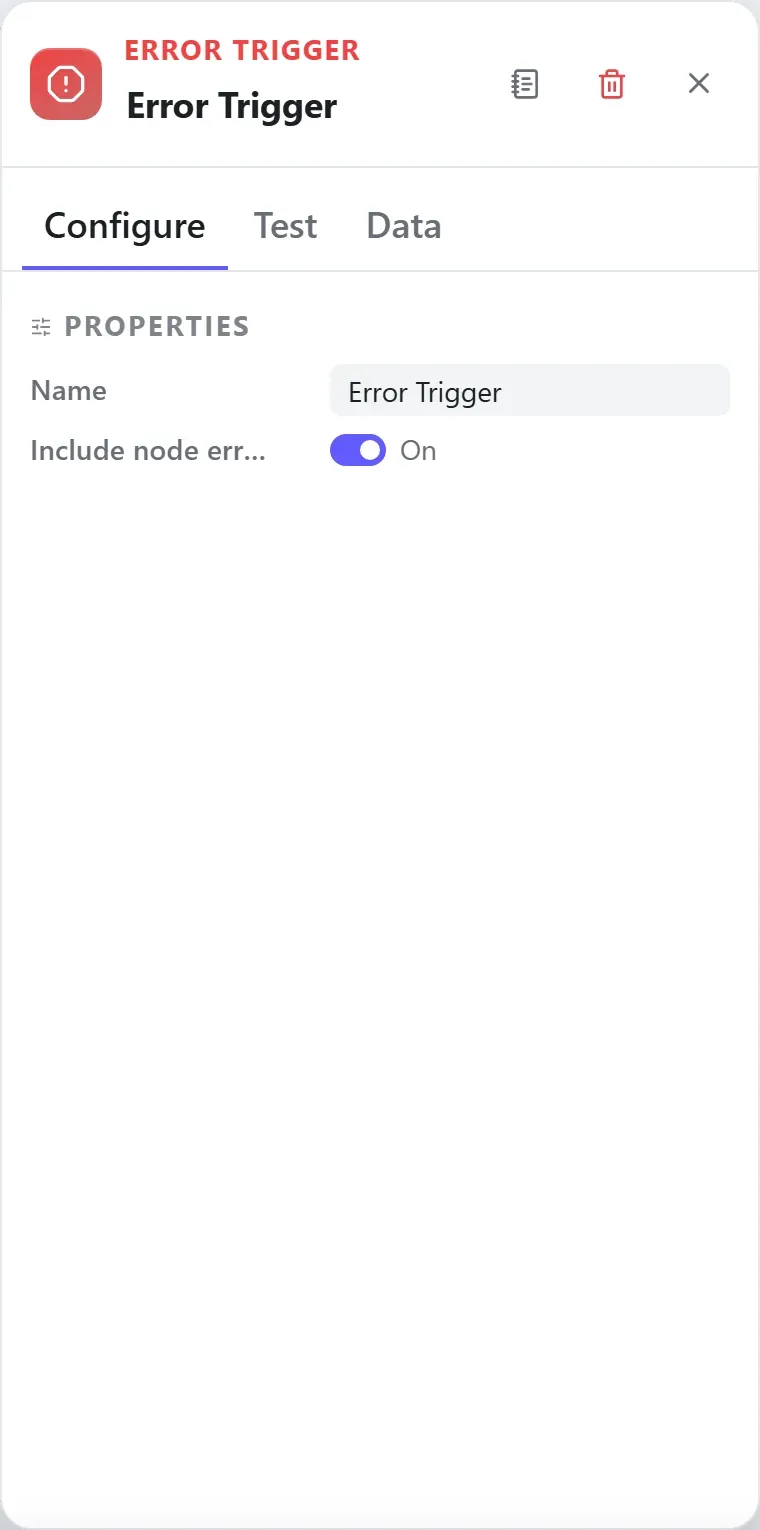

The Error Trigger node's settings in the Studio builder — The settings for **Error Trigger**, showing the values from the flow above.

Ports

This is a trigger — it starts runs and takes no input wire.

Ports are the node’s contract with its neighbours. In the editor a port label renders bold when wired and italic when optional; ◈ ports accept attachment carriers rather than data wires.

Direction	Port	Label	What flows through it
Output	`output`	Error report

How data flows through it

As a trigger, Error Trigger starts runs — it takes no input wire. What it emits is the request wrapper: the event’s body becomes the payload, and the wrapper carries the event metadata around it (for an HTTP-style trigger that’s headers.*, request.method, request.path and query). Downstream nodes consume the content — the wrapper is unwrapped at each node boundary, and expression roots like {{ headers.x }} still resolve against the wrapper when you need the metadata. See Runs & run data for the envelope model.

Expressions in the config

None of this node’s properties are string-typed, so {{ }} expressions don’t apply here — JSON- and code-typed fields are always taken literally.

Build it with AI

Every node in this reference is reachable through Flowdrome’s AI Copilot and the MCP tools — say what you want, and the graph surgery happens server-side. Node types resolve fuzzily, so the catalog label (Error Trigger) works as well as the exact type id (error-handling.error).

In the Copilot panel (or any connected AI):

create a workflow that starts with error trigger and logs the result

As a step in a create_chain_workflow call:

{"type":"Error Trigger","config":{}}

Raw MCP call — add this node to a workflow with add_node

curl -s -X POST http://localhost:4800/mcp -H "content-type: application/json" -d '{ "jsonrpc": "2.0", "id": "1", "method": "tools/call", "params": { "name": "add_node", "arguments": { "workflowId": "<id>", "type": "Error Trigger" } } }'

Example input & output

Captured from a real test run of the workflow above — this is what the Runs view shows after pressing Test workflow. This particular run fails by design (see the note below).

The Error Trigger fires in the run's RECOVERY phase after another node failed; its output is the captured failure.

Input — what the node received

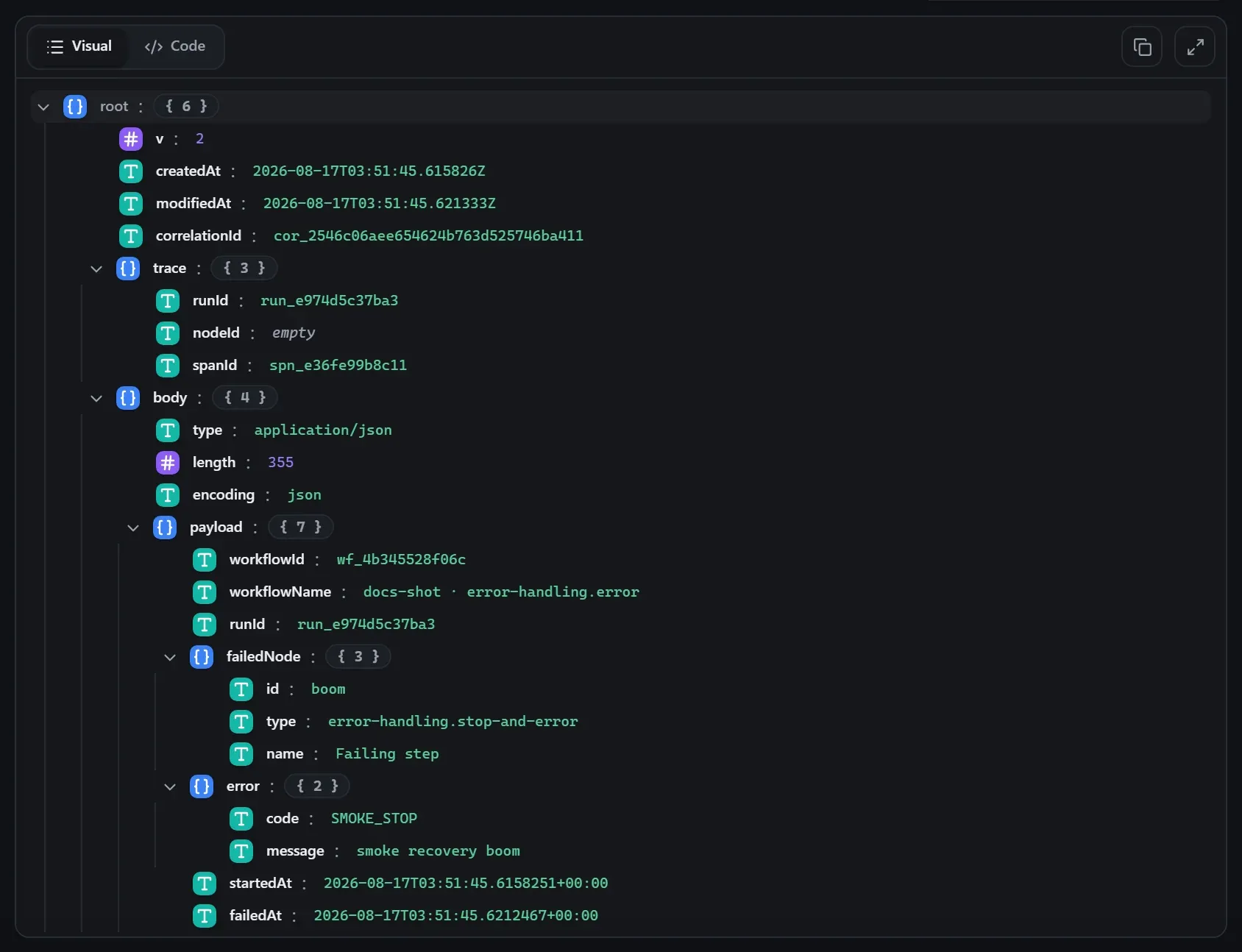

The Error Trigger node's input envelope in the run data viewer — The input envelope in the Runs view — Flowdrome always shows the whole envelope, with the payload inside `body`.

Output — what the node produced

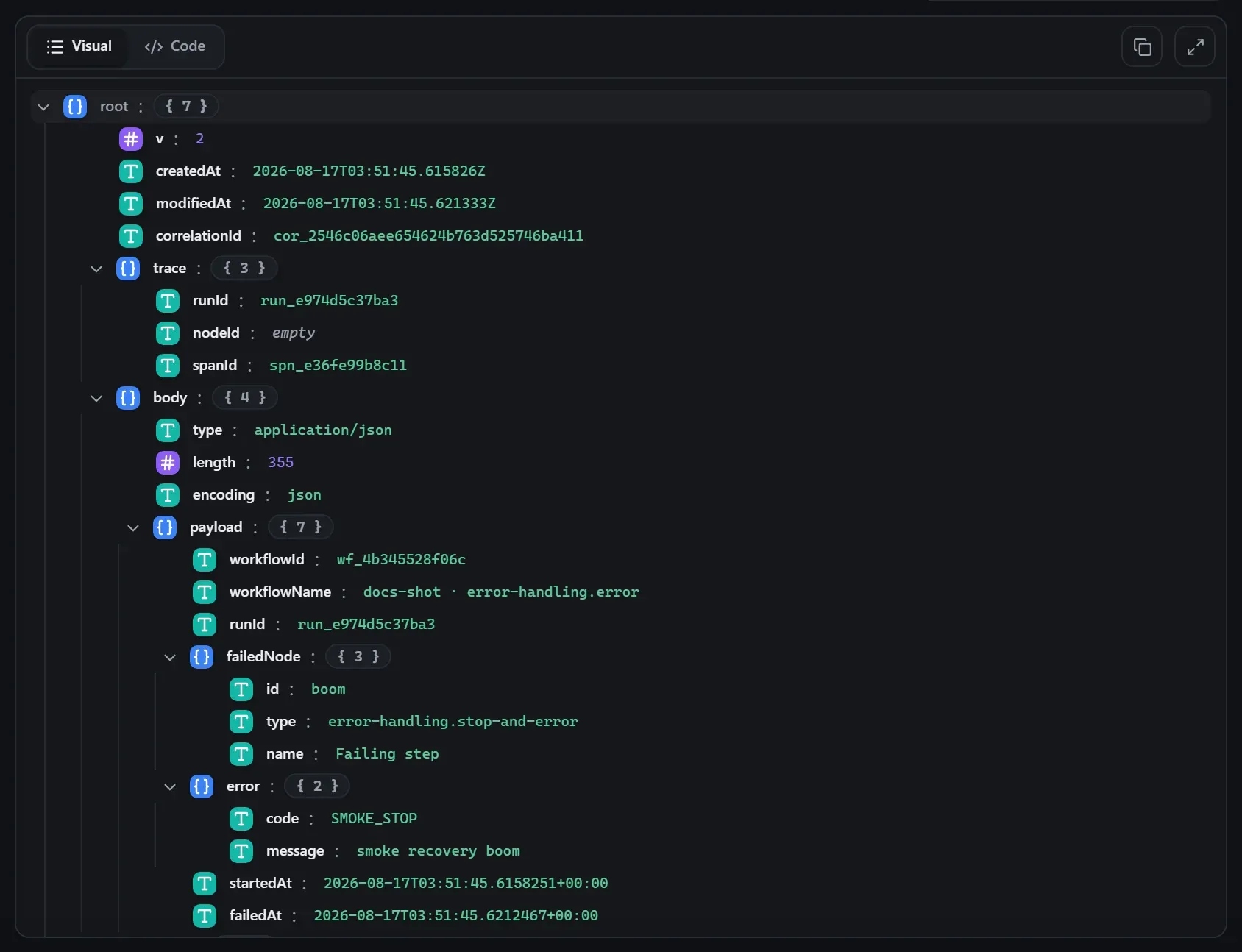

The Error Trigger node's output envelope in the run data viewer — The output envelope after the step ran.

Property reference

Every setting, with its type and default — the same fields shown configured above.

Property	Type	Default	Description
Include node errors `includeNodeErrors`	`boolean`	`true`	Include the failing node's error details in the payload (reserved — always on in v1).
