RSS Read

input.rss-read Input v0.1.0

Reads an RSS 2.0 or Atom feed and emits its entries newest first — optionally only the ones not seen before, so a schedule + RSS Read is a feed poller.

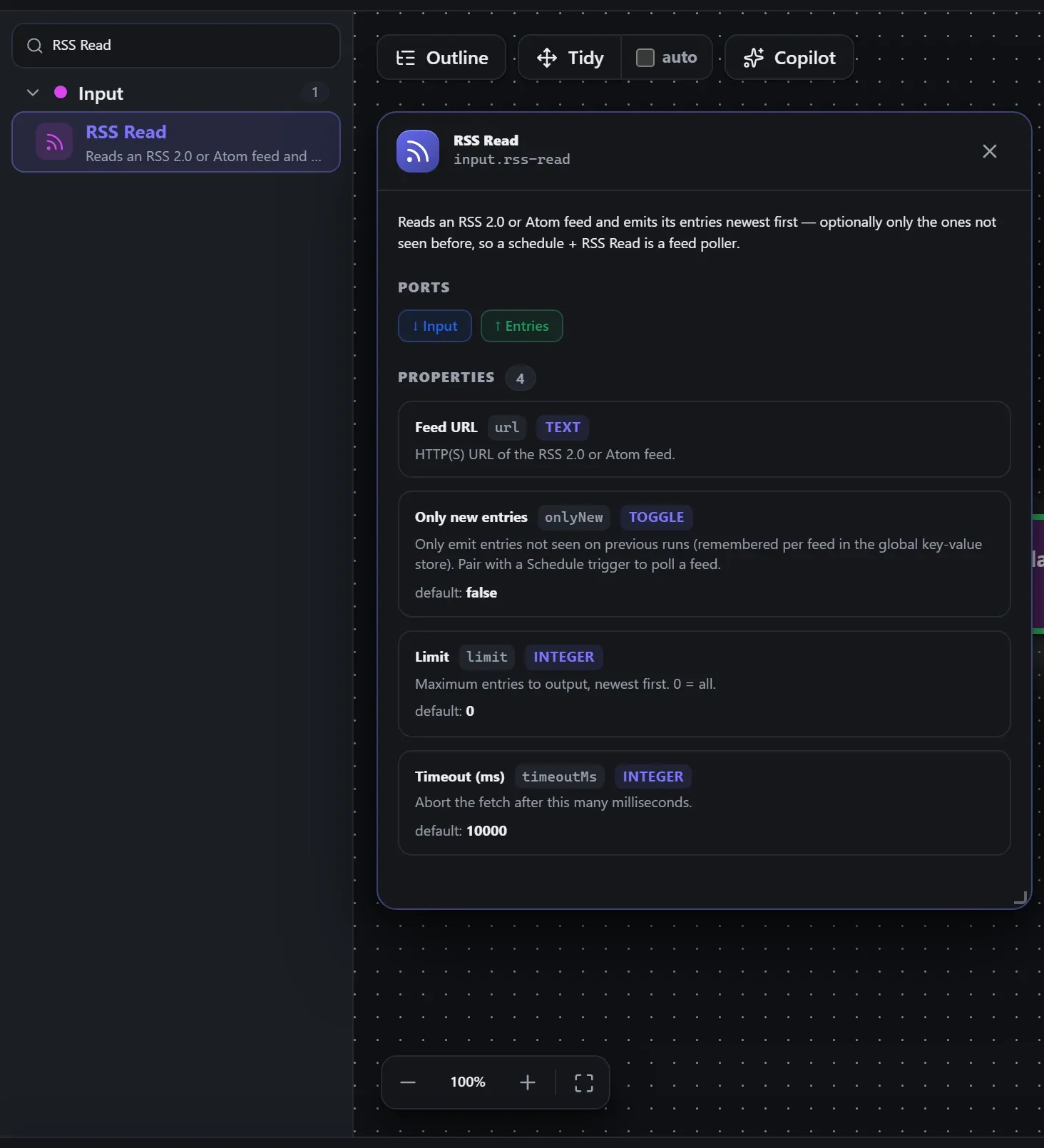

Finding it in the library

Search the builder's node library for RSS Read (it lives under Input). A single click opens the in-editor docs panel shown here — description, ports, and every property, without leaving the canvas. Double-click (or drag) to add it to the workflow.

Library capture pending — regenerate with npm run shots:nodes.

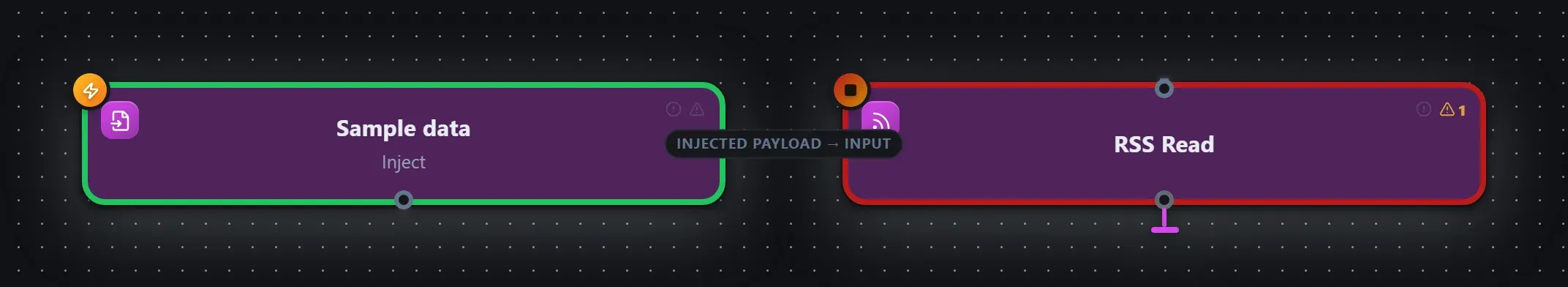

Wired up in the builder

RSS Read in a real, runnable flow — captured live from the Studio editor, exactly as it looks on your canvas. This is the same workflow used for the example input & output below.

Canvas capture pending — regenerate with npm run shots:nodes.

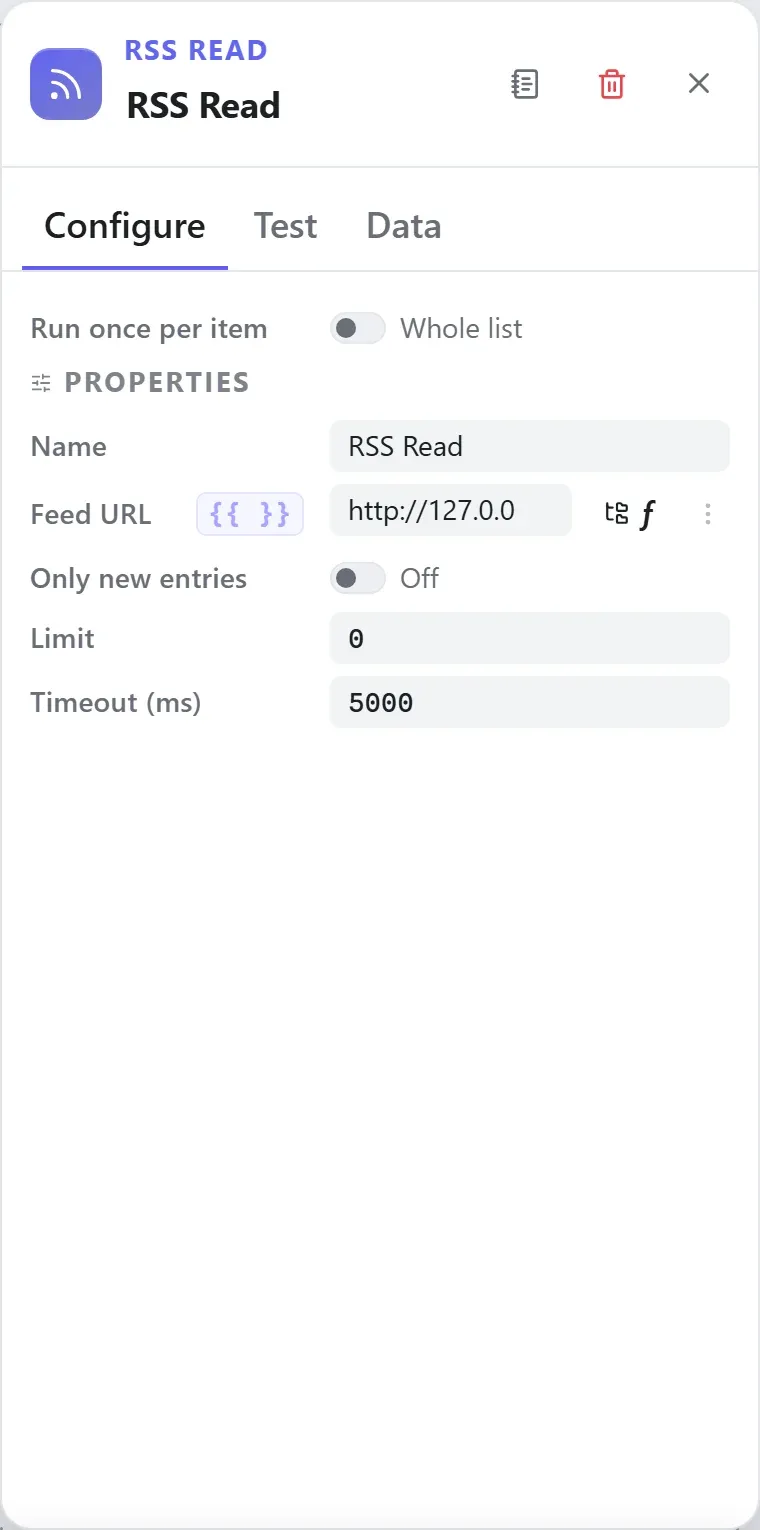

How it’s configured

The node’s Configure panel as it opens in the builder when you select the step — every setting laid out with real values. Click any field to edit it.

Config capture pending — regenerate with npm run shots:nodes. See the full property reference below.

Ports

Ports are the node’s contract with its neighbours. In the editor a port label renders bold when wired and italic when optional; ◈ ports accept attachment carriers rather than data wires.

Direction	Port	Label	What flows through it
Input	`input`	Input
Output	`output`	Entries

How data flows through it

RSS Read consumes the content of the incoming envelope — when it is fed directly by a trigger, the trigger’s wrapper is unwrapped at the node boundary so the node sees the actual data, not the metadata shell. Its output becomes the payload for the next node, while the envelope (trace ids, correlation, binary refs) rides along untouched. In the Runs view you always see the whole envelope for both sides of this node.

Expressions in the config

String-typed properties accept {{ }} expressions evaluated against the incoming item at run time — e.g. {{ $json.customer.email }}. On this node that’s url. JSON- and code-typed fields never interpolate — they are passed through literally.

Build it with AI

Every node in this reference is reachable through Flowdrome’s AI Copilot and the MCP tools — say what you want, and the graph surgery happens server-side. Node types resolve fuzzily, so the catalog label (RSS Read) works as well as the exact type id (input.rss-read).

In the Copilot panel (or any connected AI):

add a rss read node after the trigger

As a step in a create_chain_workflow call:

{"type":"RSS Read","config":{}}

Raw MCP call — add this node to a workflow with add_node

curl -s -X POST http://localhost:48170/mcp -H "content-type: application/json" -d '{ "jsonrpc": "2.0", "id": "1", "method": "tools/call", "params": { "name": "add_node", "arguments": { "workflowId": "<id>", "type": "RSS Read" } } }'

Example input & output

Captured from a real test run of the workflow above — this is what you see in the run data panel after pressing Test workflow.

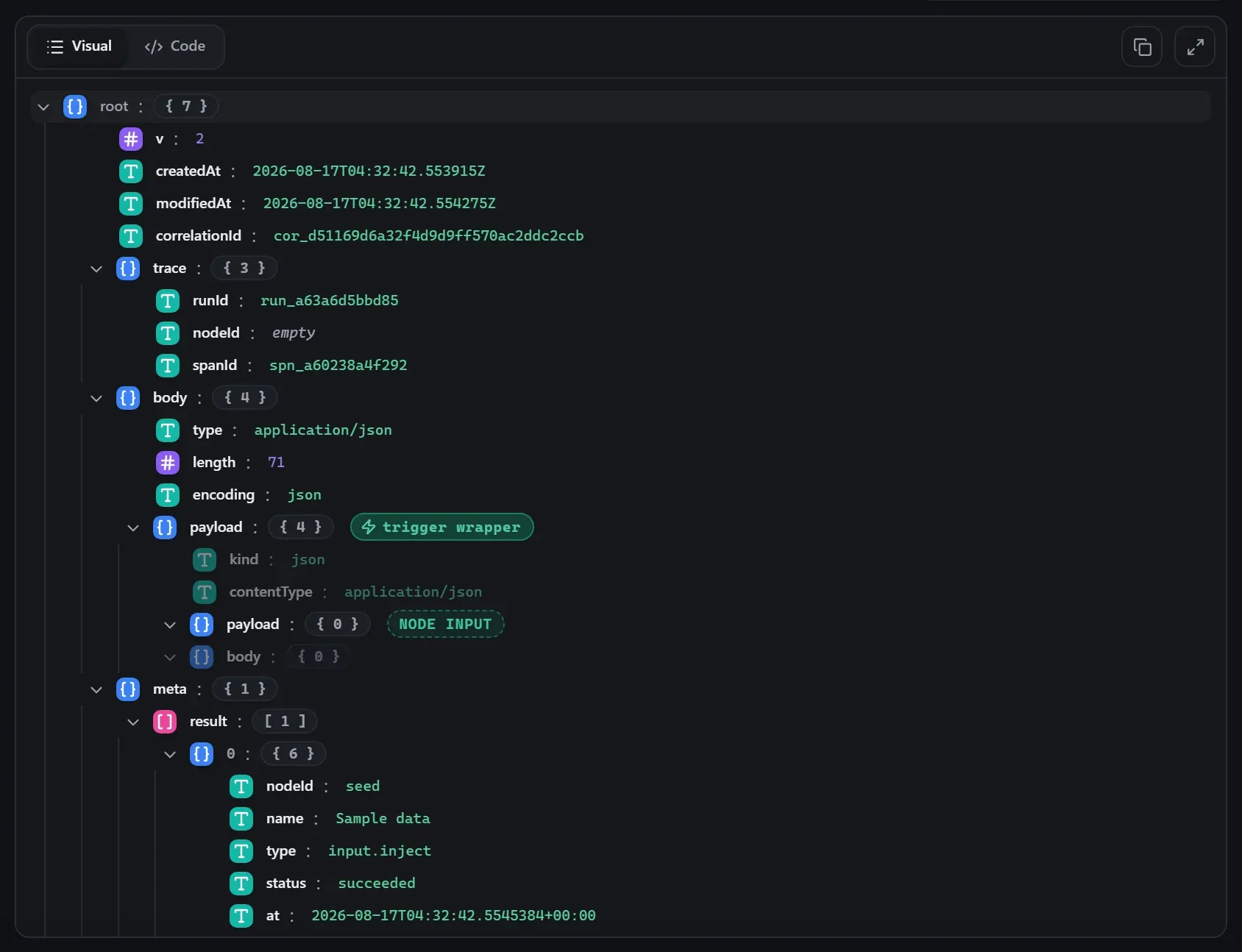

Input — what the node received

{
  "kind": "json",
  "contentType": "application/json",
  "payload": {},
  "body": {}
}

Output — what the node produced

[
  {
    "title": "Beta",
    "link": "http://x/2",
    "content": "",
    "isoDate": "2026-06-02T10:00:00.000Z",
    "guid": "s2",
    "author": "",
    "categories": []
  },
  {
    "title": "Alpha",
    "link": "http://x/1",
    "content": "",
    "isoDate": "2026-06-01T10:00:00.000Z",
    "guid": "s1",
    "author": "",
    "categories": []
  }
]

Property reference

Every setting, with its type and default — the same fields shown configured in the panel above.

Property	Type	Default	Description
Feed URL `url`	`string`	`""`	HTTP(S) URL of the RSS 2.0 or Atom feed.
Only new entries `onlyNew`	`boolean`	`false`	Only emit entries not seen on previous runs (remembered per feed in the global key-value store). Pair with a Schedule trigger to poll a feed.
Limit `limit`	`int`	`0`	Maximum entries to output, newest first. 0 = all.
Timeout (ms) `timeoutMs`	`int`	`10000`	Abort the fetch after this many milliseconds.

Related nodes

The rest of the Input group — the same folder you’d scan in the editor’s library.

This page is generated from the node registry by gen-node-docs.mjs on every site build — ports, properties, defaults and visibility rules cannot drift from the code. The screenshots and example data are captured from a live Flowdrome by npm run shots:nodes and npm run gen:examples.
