Send Message

output.send-message Output v0.1.0

Sends a normalized message to Gmail, Slack, Telegram, Discord, or a generic webhook endpoint.

The Send Message step on the Studio canvas — The **Send Message** step as it appears on the Studio canvas — input pins on the left, output ports on the right.

Finding it in the library

Search the builder's node library for Send Message (it lives under Output). A single click opens the in-editor docs panel shown here — description, ports, and every property, without leaving the canvas. Double-click (or drag) to add it to the workflow.

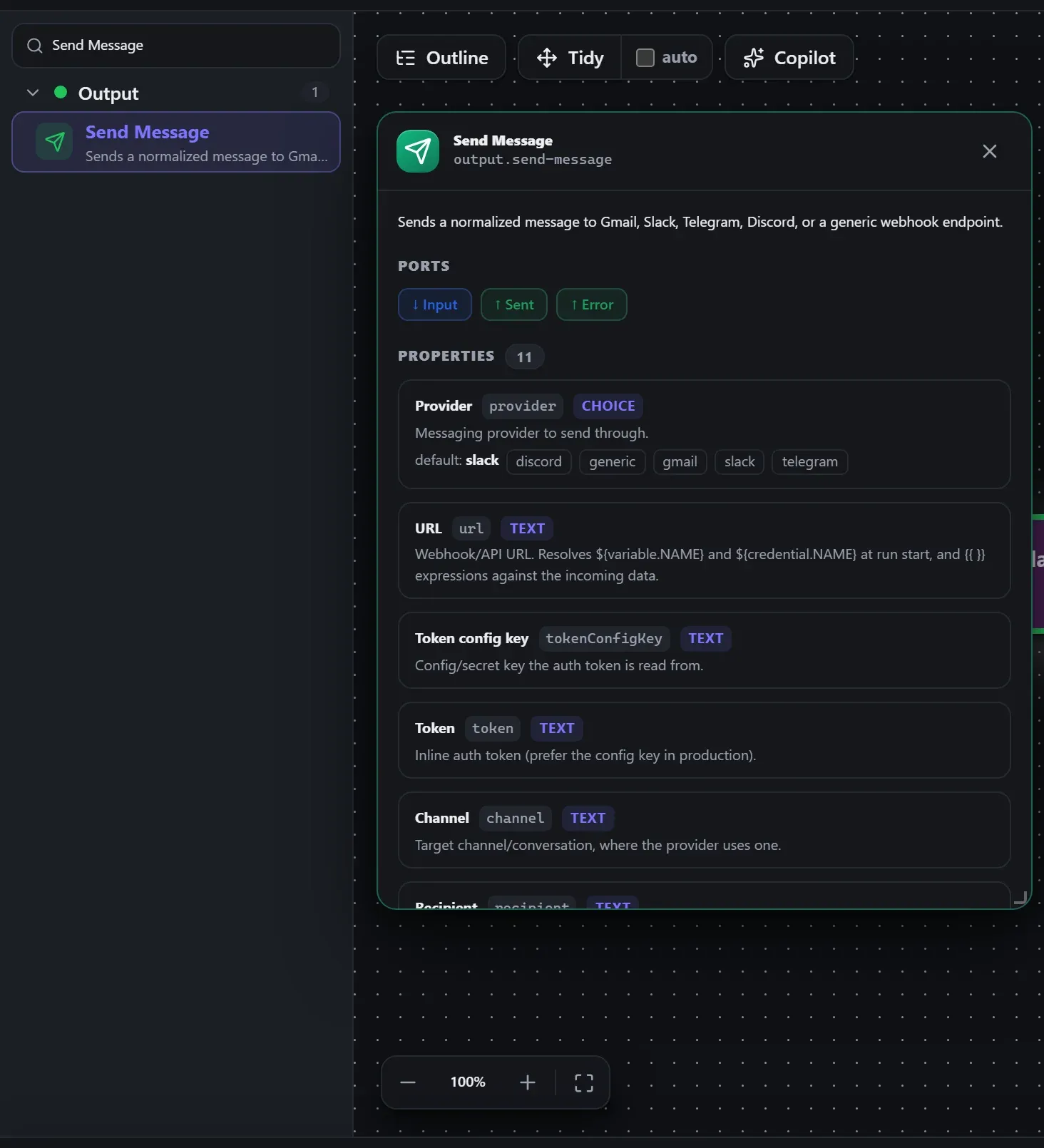

Send Message in the node library, with the in-editor docs panel open — The library entry and the in-editor docs panel for **Send Message** — the same reference this page is generated from.

Wired up in the builder

Send Message in a real, runnable flow — captured live from the Studio editor, exactly as it looks on your canvas. This is the same workflow used for the example input & output below.

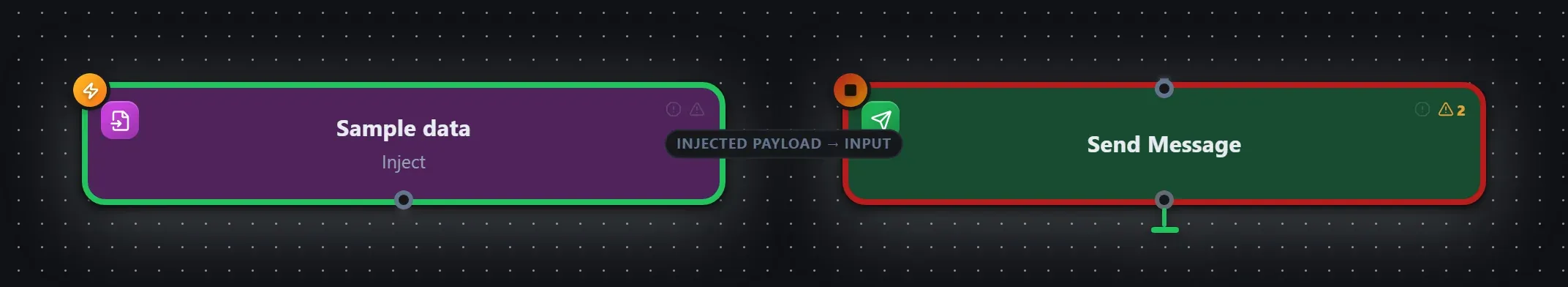

Send Message wired into a runnable workflow in the Studio builder — **Send Message** wired into a runnable flow — input on the left, output on the right.

How it’s configured

The node’s settings as the builder shows them — every field laid out with real values. In the Studio these are edited on the node: click the chevron on the divider under its ports to open them.

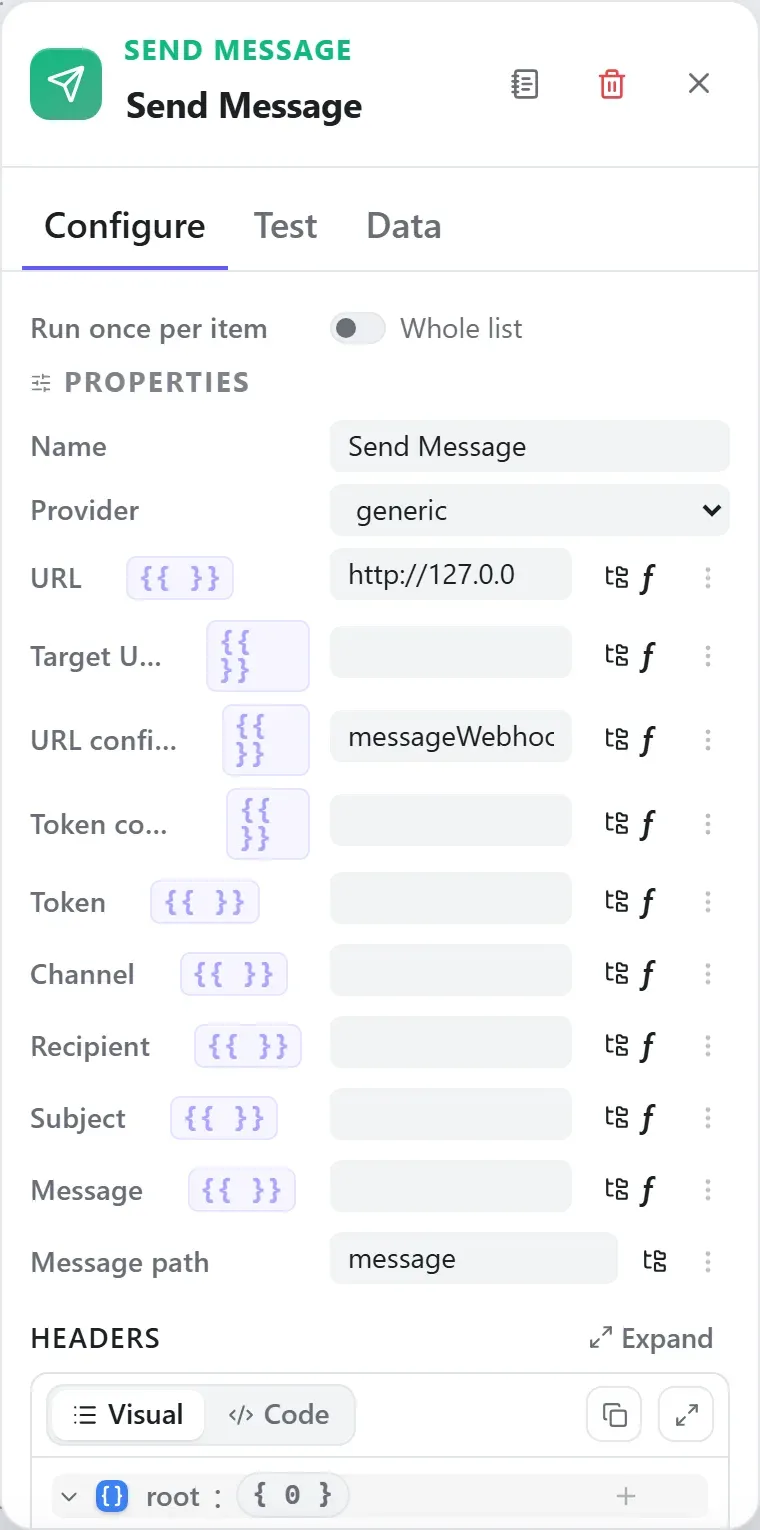

The Send Message node's settings in the Studio builder — The settings for **Send Message**, showing the values from the flow above.

Ports

Ports are the node’s contract with its neighbours. In the editor a port label renders bold when wired and italic when optional; ◈ ports accept attachment carriers rather than data wires.

Direction	Port	Label
Input	`input`	Input
Output	`sent`	Sent
Output	`error`	Error

How data flows through it

Send Message consumes the content of the incoming envelope — when it is fed directly by a trigger, the trigger’s wrapper is unwrapped at the node boundary so the node sees the actual data, not the metadata shell. Its output becomes the payload for the next node, while the envelope (trace ids, correlation, binary refs) rides along untouched. In the Runs view you always see the whole envelope for both sides of this node.

Expressions in the config

String-typed properties accept {{ }} expressions evaluated against the incoming item at run time — e.g. {{ $json.customer.email }}. On this node that’s url, tokenConfigKey, token, channel, recipient, subject, message. JSON- and code-typed fields never interpolate — they are passed through literally.

Build it with AI

Every node in this reference is reachable through Flowdrome’s AI Copilot and the MCP tools — say what you want, and the graph surgery happens server-side. Node types resolve fuzzily, so the catalog label (Send Message) works as well as the exact type id (output.send-message).

In the Copilot panel (or any connected AI):

add a send message node after the trigger

As a step in a create_chain_workflow call:

{"type":"Send Message","config":{}}

Raw MCP call — add this node to a workflow with add_node

curl -s -X POST http://localhost:4800/mcp -H "content-type: application/json" -d '{ "jsonrpc": "2.0", "id": "1", "method": "tools/call", "params": { "name": "add_node", "arguments": { "workflowId": "<id>", "type": "Send Message" } } }'

Example input & output

Captured from a real test run of the workflow above — this is what the Runs view shows after pressing Test workflow.

On this run the node emitted on ports sent, output.

Input — what the node received

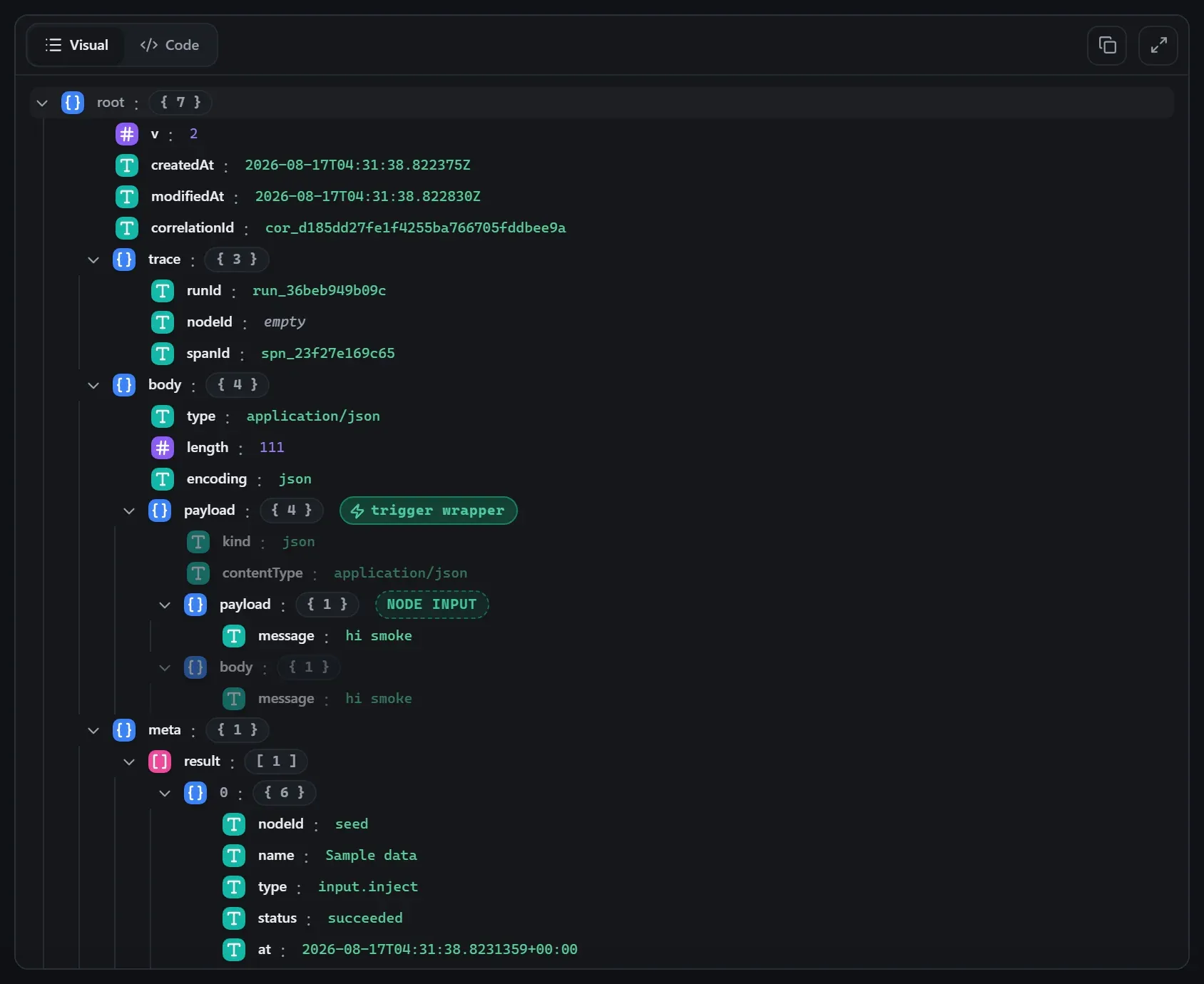

The Send Message node's input envelope in the run data viewer — The input envelope in the Runs view — Flowdrome always shows the whole envelope, with the payload inside `body`.

Output — what the node produced

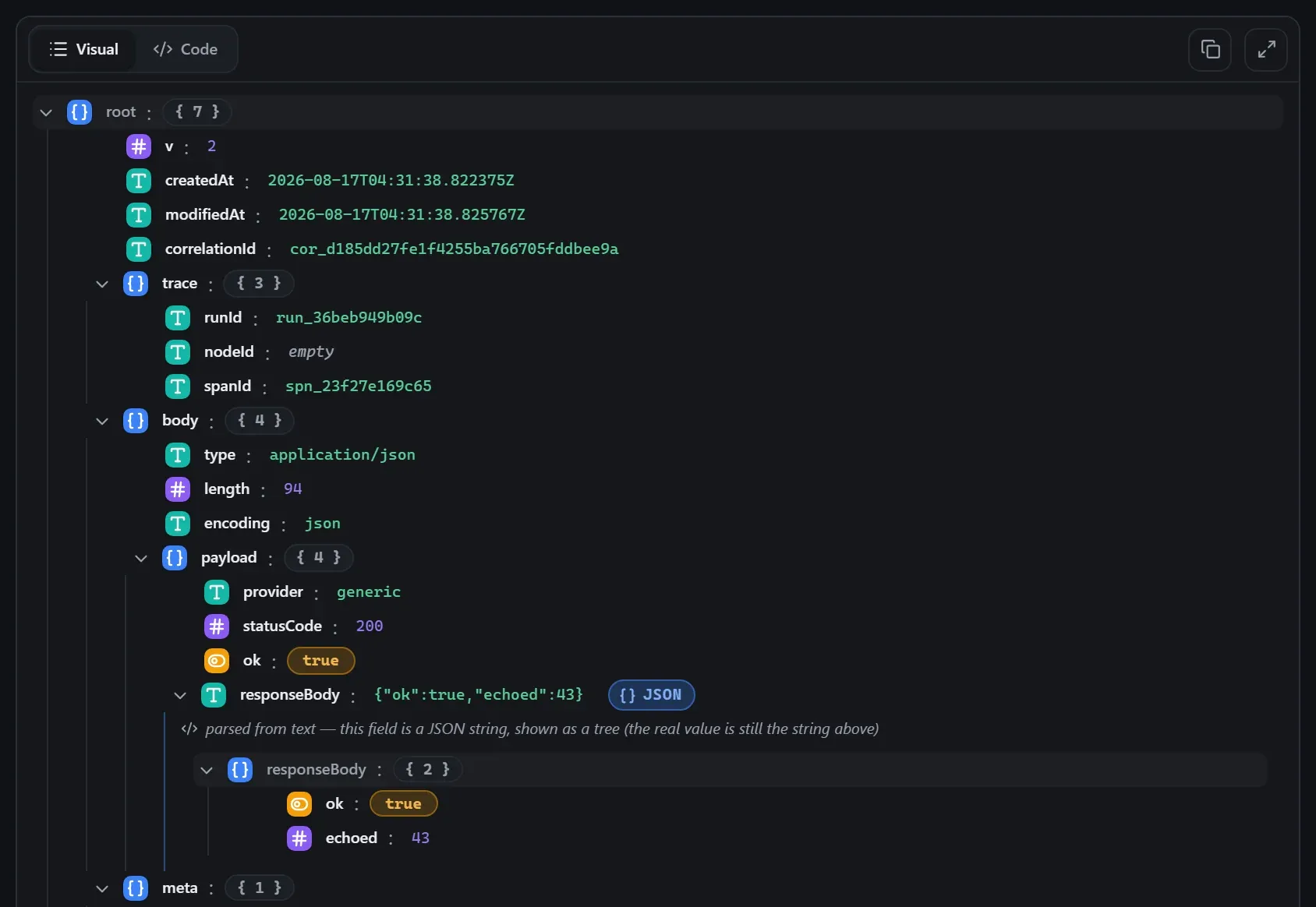

The Send Message node's output envelope in the run data viewer — The output envelope after the step ran.

Property reference

Every setting, with its type and default — the same fields shown configured above.

Property	Type	Default	Description
Provider `provider`	`select`	`"slack"`	Messaging provider to send through. `discordgenericgmailslacktelegram`
URL `url`	`string`	`—`	Webhook/API URL. Resolves ${variable.NAME} and ${credential.NAME} at run start, and {{ }} expressions against the incoming data.
Token config key `tokenConfigKey`	`string`	`—`	Config/secret key the auth token is read from.
Token `token`	`string`	`—`	Inline auth token (prefer the config key in production).
Channel `channel`	`string`	`—`	Target channel/conversation, where the provider uses one.
Recipient `recipient`	`string`	`—`	Target recipient, where the provider uses one.
Subject `subject`	`string`	`—`	Message subject, where the provider uses one.
Message `message`	`string`	`—`	Static message text (or read it from the path below).
Message path `messagePath`	`field`	`"message"`	Dotted path to the message text in the input.
Headers `headers`	`keyvalue`	`—`	Additional request headers — one row per header; values may hold {{ }} expressions, resolved when the node runs.
Expect 2xx `expectOk`	`boolean`	`true`	Fail the node on non-2xx responses.

Related nodes

The rest of the Output group — the same folder you’d scan in the editor’s library.

This page is generated from the node registry by gen-node-docs.mjs on every site build — ports, properties, defaults and visibility rules cannot drift from the code. The screenshots and example data are captured from a live Flowdrome by npm run shots:nodes and npm run gen:examples.
